Testing Technology for Products and Production Support

Type: Allround-Line 20kN; Zwick GmbH & Co. KG

• Maximum testing force: 20 kN
• Crosshead speed: 0.0005 to 1000 mm/min
• Temperature chamber: -70 to +250 °C
• Positioning repeatability: ± 2 µm (at the crosshead)
• Accuracy class: 0.5 according to EN ISO 9513 (with short sensors), Maximum in the temperature chamber 1 (with long sensors)
• Specimen holder: Wedge screw up to 50 kN
• Bending device: 3-point and 4-point

Type: Amsler HIT 1100 F: Zwick GmbH & Co. KG

• Temperature chamber: -70 to +250 °C
• Free fall height: 1 m
• Fall weight: 9.3 to 29.4 kg (+ 1 kg sled)
• Maximum impact velocity: 4.4 m/s (without acceleration), 14.1 m/s (with 9.3 kg), 8.75 m/s (with 29.4 kg)
• Maximum energy input: 275 J (without acceleration, with 29.4 kg), 926 J (with 9.3 kg), 1126 J (with 29.4 kg)
• Measurement frequency: up to 3 MHz

Type: ElectroForce 3310, TA Instruments

• Maximum force: ± 2100 N (static), ± 1000 N (dynamic)
• Amplitude range: ± 12.5 mm
• Amplitude resolution: 1 nm
• Accuracy: ± 5 µm
• Frequency: 0.00001 to 300 Hz
• DMA frequency: max. 100 Hz
• Speed: 13 nm/s to 1.5
• Temperature chamber: -150 to +350 °C
• Heating rate: ≤ 20 K/min
• Temp. chamber dimensions (internal): 355mm * 250 mm * 300 mm

Type: Zwick ZHU2.5/Z2.5

• Hardness measurement head resolution: 0.02 µm
• Maximum force application: 2.5 kN (continuous)
• Measured parameters: Force and indentation depth
• Test heads (relevant for hardness testing): Knoop (steel ball D = 5 mm)
• Image resolution: 200x and 400x

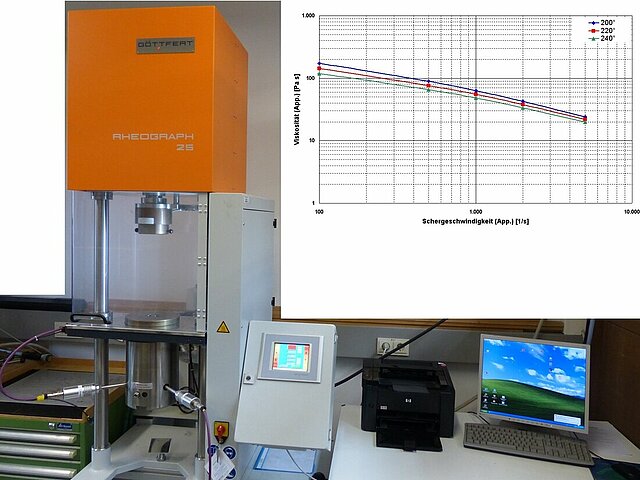

Type: Rheograph 25, Göttfert GmbH

• Type: 2-channel system
• Speed range: 0.00004 to 40 mm/sec (= 1:1,000,000)
• Force transducer: 25 kN
• Pressure transducer: 20 to 2500 bar
• Temperature range: up to 400°C
• Dynamic acceleration: from 0 to 40 mm/s in 0.6 seconds

Type: MP-D, Göttfert GmbH

• Test channel diameter: 9.5 mm
• Load weights: 1.20 ; 2.16 ; 3.80 ; 5.00 ; 10.0 ; 21.6 kg
• Usable measurement range: 0.1 to 250 g/10min
• Temperature deviation: 0.5°C over the test cylinder length

Type: MI-3, Göttfert GmbH

• Test channel diameter: 9.5 mm
• Load weights: 1.20 ; 2.16 ; 3.80 ; 5.00 ; 10.0 ; 21.6 kg
• Temperature range: 5 to 400°C (optionally 500°C)
• Temporal temperature fluctuation: less than ± 0.1°C
• Spatial temperature fluctuation: < 0.2°C (60 to 400°C), < 0.3°C (400 to 500°C)

Type: DHR-2, TA Instruments

• Torque: 10 nNm to 200 mNm (rotation), 2 nNm to 200 mNm (oscillation)
• Torque resolution: 0.1 nNm
• Oscillation frequency: 10-6 to 100 Hz
• Deformation jump: 15 ms
• Speed jump response time: 5 ms
• Normal force range: ≤ 50 N
• Normal force resolution: 0.5 mN
• Temperature range: RT to +600°C
• Max. heating rate: 60 K/min

Type: HydroTracer FLV, aboni GmbH

• Absolute measurement range: 0.2 to approx. 30 mg H2O
• Relative measurement range: 0.0005 to 5% material moisture
• Reproducibility: 0.1 mg H2O (1 mg water content) to 0.5 mg H2O (20 mg water content)
• Sample size: 0.01 to 150 g (300g), depending on density and moisture content
• Sample volume: approx. 125 mm³ maximum
• Measurement temperature: 50 to 210°C
• Reagent: CaH2 powder

Type: Smartzoom 5, Carl Zeiss AG

• Magnification: 10 to 1100 times
• Various lighting options e.g. ring light, transmitted light, reflected light
• Arm swivel angle: ± 45°
• Expanded imaging options: 3D images and 3D measurements

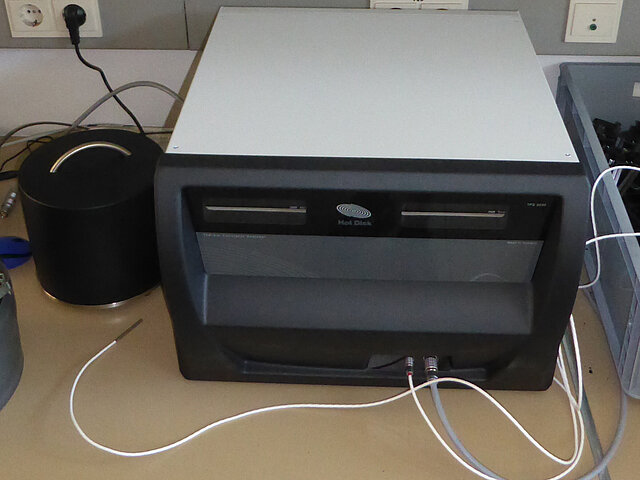

Type: TPS 2200, Hot Disk

• Thermal conductivity: 0.01 to 500 W/m*K
• Thermal diffusivity: 0.1 to 300 mm²/s
• Heat capacity: up to 5 MJ/m³K
• Temperature range: -50 to 750°C
• Measurement accuracy: better than 5%
• Measurement time: 2.5 to 1280 seconds

• Minimum sample geometry: Bulk materials 2 mm (thickness) x 8 mm (Ø or □) - Slab technique 0.1 mm (thickness) x 15 mm (Ø or □)

• Various sensors available: Kapton #7577, #5465, #5501, #8563, #4922, #5599 - Mica #5465, #5082, #4921, #4922, #5599 - Teflon #7577, #5465, #5501

Type: DIADRIVE 2000/280, Mutronic

• Working range: approx. 560 x 280 x 60 mm²
• Repetition accuracy: ± 0.02 mm
• Symmetry accuracy: ± 0.05 mm
• Speed: max. 20 mm/s
• Max. milling height for plastics: 8 mm

Type: TomoScope® XS Plus; Werth Messtechnik

• Tube voltage: 160 kV
• Tube type: Transmission tube
• Max. length measurement deviation: up to 4.5 µm
• Max. workpiece dimensions: Ø max. = approx. 289 mm; L max. = approx. 456 mm

• Max. resolution: 1.32 µm voxel size

Type: Haake Polylab Rheomix 3000 (Plastograph)

• Chamber volume in cm³: 625
• Chamber volume with rotor in cm³: 400
• Max. temperature in °C: 400
• Electrical heating zones: 3
• Max. speed in RPM: 250
• Max. torque in Nm: 300

Available Software: FiberShape / FASEP / FiVer

• FiVer: Glass and Carbon Fibers
• FASEP: Glass and Carbon Fibers
• FibreShape: Natural, Glass, and Carbon Fibers as well as other particles
